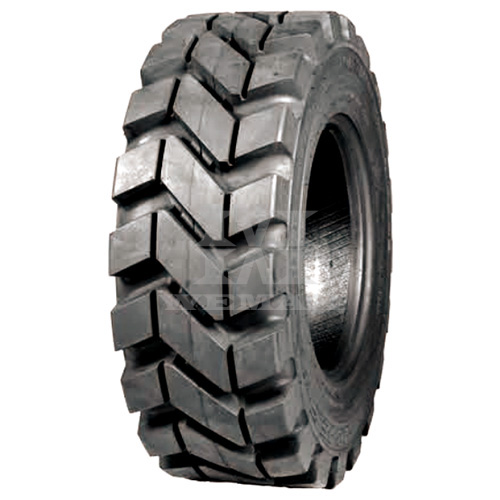

AGRIK 777
L5
Extra-deep, aggressive L5 tread pattern designed for skid steer, backhoe and telehandler applications.
Features
■Full, flat profile with self-cleaning stepped tread improves performance
■Center tie bar reduces vibration during over-the-road driving
■Deep under-tread for improved puncture resistance
■Special cut resistant compound improves wear and reduces tread chunking
■Increased net-to-gross for maximum tread life and lowest cost-per-hour
Applications

Extra-deep, aggressive L5 tread pattern designed for skid steer, backhoe and telehandler applications.
Features
■Full, flat profile with self-cleaning stepped tread improves performance
■Center tie bar reduces vibration during over-the-road driving
■Deep under-tread for improved puncture resistance
■Special cut resistant compound improves wear and reduces tread chunking
■Increased net-to-gross for maximum tread life and lowest cost-per-hour
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation
(KPa)
|
L.C.C
(kg)
|
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 12-16.5 | AGRIK 777 | L5 | TL | 9.75 | 14PR | 831 | 307 | 30 | 550 | - | 3075 | - |
| 14-17.5 | AGRIK 777 | L5 | TL | 10.5 | 14PR | 921 | 349 | 34 | 550 | - | 3875 | - |
