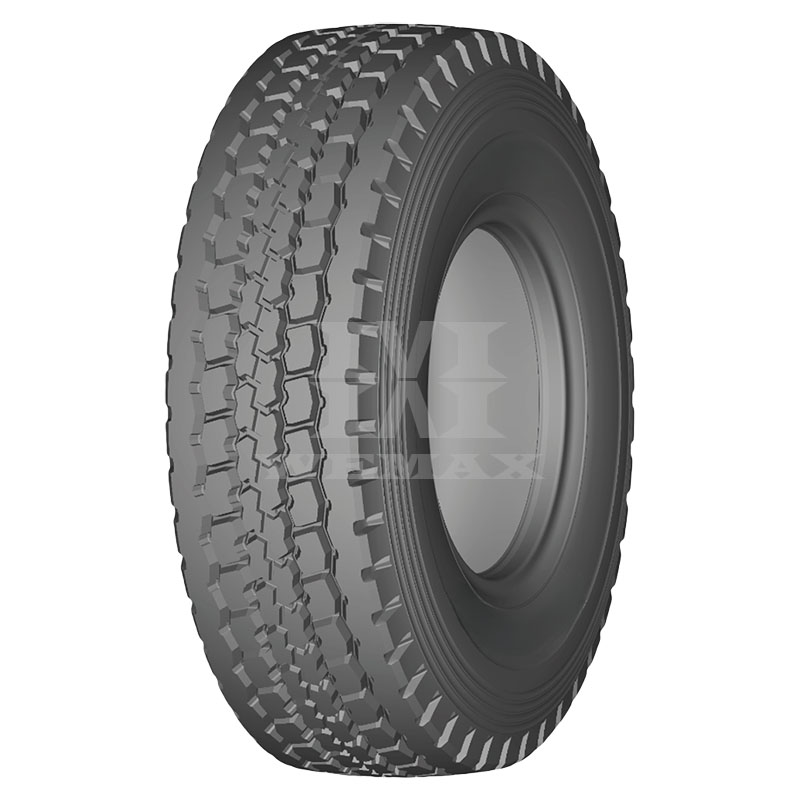

AMC01
MOBILE CRANE
For cranes operating in highway and off-the-road applications.
Features
■The closed,continuous shoulder pattern and optimized pitch reduce tire noise and improve high-speed performance
■With optimize profile theory, contact footprint and special tread compounding, avoid irregular wear and effectively improve service life
■Special compounding and steel framework reduce heat generation and improve heat resistance, safety requirement of high speed operation.
Applications

For cranes operating in highway and off-the-road applications.
Features
■The closed,continuous shoulder pattern and optimized pitch reduce tire noise and improve high-speed performance
■With optimize profile theory, contact footprint and special tread compounding, avoid irregular wear and effectively improve service life
■Special compounding and steel framework reduce heat generation and improve heat resistance, safety requirement of high speed operation.
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. | Inflation | L.C.C | L.I.S |
| mm | mm | mm | KPa | kg | |||||||
|
385/95R24 (14.00R24) |
AMC01 | CRANE | TL | 10.00W | ★★★ | 1365 | 385 | 20.5 | 900 | 6000 | 170F/170G |
|
385/95R25 (14.00R25) |
AMC01 | CRANE | TL | 10.00/1.5 | ★★★ | 1365 | 385 | 20.5 | 900 | 6000 | 170F/170G |
|
445/95R25 (16.00R25) |
AMC01 | CRANE | TL | 11.25/2.0 | ★★★ | 1476 | 440 | 25 | 900 | 6700 | 174F |
|
445/95R25 (16.00R25) |
AMC01 | CRANE | TL | 11.25/2.0 |
★★★ |
1476 | 440 | 25 | 900 | 7300 | 177E |
|
445/80R25 (17.5R25) |
AMC01 | CRANE | TL | 14.00/1.5 | ★★ | 1330 | 450 | 25 | 700 | 6000 | 170E/170F |
|
505/95R25 (18.00R25) |
AMC01 | CRANE | TL | 13.00/2.5 | ★★ | 1585 | 505 | 26 | 900 | 9500 | 186E |
|
525/80R25 (20.5R25) |
AMC01 | CRANE | TL | 17.00/2.0 | ★★ | 1472 | 525 | 31 | 700 | 7750/7100 | 179E/176F |
