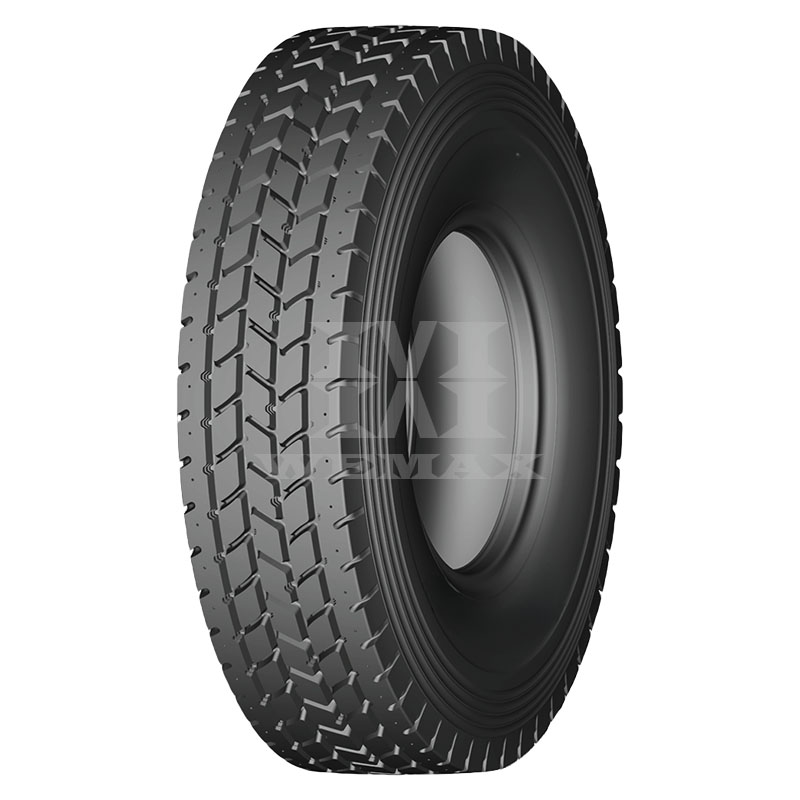

AMC02
MOBILE CRANE
For cranes operating in highway and off-the-road applications.
Features
■The multi-block special ribbed design with optimized grooves effectively provides good driving force,avoids irregular wear, and meets high-speed use well.
■The specialized rubber and steel carcass lower heat generation and increase heat resistance to meet high-speed needs. The optimal profile, contact patch and tread improve service life.
■Block at tread edge with skid depth indicator, effectively reduce tire noise and easily identify using condition.
Applications

For cranes operating in highway and off-the-road applications.
Features
■The multi-block special ribbed design with optimized grooves effectively provides good driving force,avoids irregular wear, and meets high-speed use well.
■The specialized rubber and steel carcass lower heat generation and increase heat resistance to meet high-speed needs. The optimal profile, contact patch and tread improve service life.
■Block at tread edge with skid depth indicator, effectively reduce tire noise and easily identify using condition.
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. | Inflation | L.C.C | L.I.S |
| mm | mm | mm | KPa | kg | |||||||
|
385/95R24 (14.00R24) |
AMC02 | CRANE | TL | 10.00W | ★★★ | 1365 | 385 | 23 | 70/80 | 6000 | 170E/170F |
|
385/95R25 (14.00R25) |
AMC02 | CRANE | TL | 10.00/1.5 | ★★★ | 1365 | 385 | 23 | 70/80 | 6000 | 170E/170F |
|
445/95R25 (16.00R25) |
AMC02 | CRANE | TL | 11.25/2.0 | ★★ | 1476 | 436 | 25 | 70/80 | 7300/6700 | 177E/174F |
