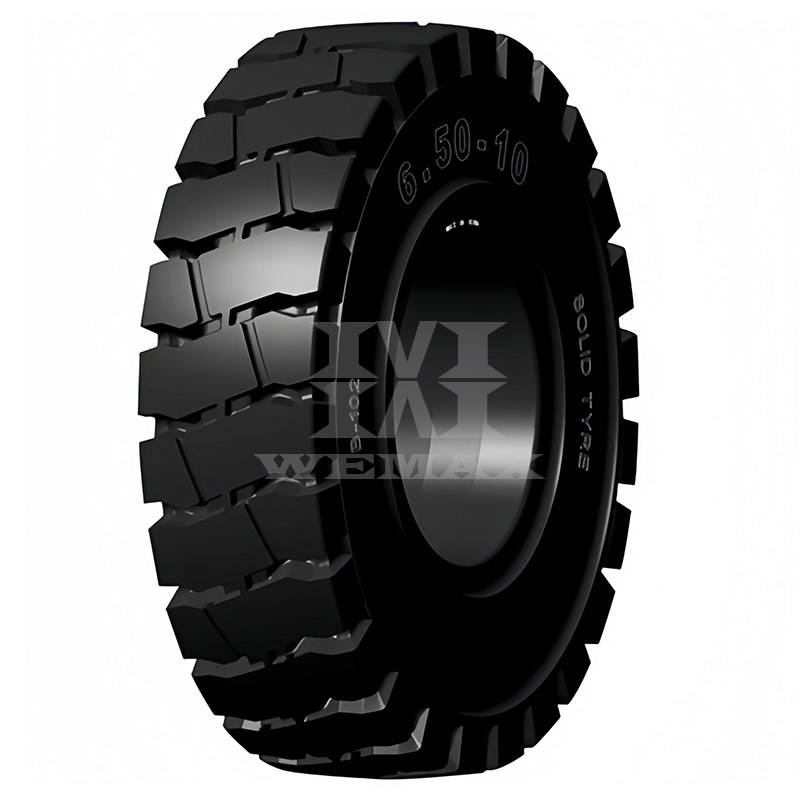

B102
SOLID

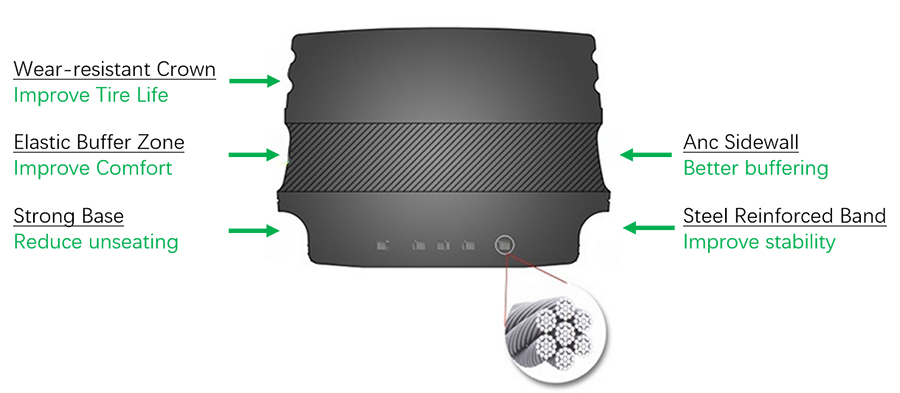

Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Suitable for general forklift rental, Port Terminal low-speed vehicles
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications
Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Suitable for general forklift rental, Port Terminal low-speed vehicles
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications
Description
| SIZE | PATTERN | RIM | O.D. | S.W. | Surface Width |
Loading Capacity(kg) Counter Balance Lift Equipment |
Loading Capacity(kg) Other Industrial Equipment |
||||||||||
| 10km/h | 16km/h | 25km/h | |||||||||||||||
| Size | STD | SWIFT | mm | mm | mm | Driving | Steering | Driving | Steering | Driving | Steering | Static | 6km/h | 10km/h | 25km/h | ||
| 4.00-8 | B102 | 3.00 | √ | √ | 392 | 113 | 104 | 1090 | 840 | 995 | 765 | 925 | 710 | 1135 | 925 | 840 | 710 |
| 15x4 1/2-8 | B102 | 3.00 | √ | √ | 365 | 113 | 105 | 1005 | 775 | 915 | 705 | 850 | 655 | 1050 | 850 | 775 | 655 |
| 5.00-8 | B102 | 3.0/3.5 | √ | √ | 446 | 115 | 110 | 1255 | 965 | 1145 | 880 | 1060 | 815 | 1305 | 1060 | 960 | 815 |
| 16x6-8 | B102 | 4.33 | √ | √ | 391 | 143 | 135 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 | 1610 | 1305 | 1185 | 1005 |
| 18x7-8 | B102 | 4.33 | √ | √ | 440 | 154 | 141 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 2535 | 2060 | 1870 | 1585 |
| 6.00-9 | B102 | 4.00 | √ | √ | 517 | 137 | 123 | 1975 | 1520 | 1805 | 1390 | 1675 | 1290 | 2065 | 1675 | 1520 | 1290 |
| 7.00-9 | B102 | 5.00 | √ | √ | 545 | 158 | 137 | 2670 | 2055 | 2440 | 1875 | 2260 | 1740 | 2785 | 2260 | 2055 | 1740 |
| 21x8-9 | B102 | 6.00 | √ | √ | 501 | 186 | 169 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 3025 | 2455 | 2230 | 1890 |
| 6.50-10 | B102 | 5.00 | √ | √ | 568 | 161 | 150 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 2840 | 2310 | 2095 | 1775 |
| 23x9-10 | B102 | 6.20 | √ | √ | 563 | 195 | 182 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 | 3890 | 3160 | 2865 | 2430 |
| 200/50-10 | B102 | 6.20 | √ | √ | 450 | 191 | 166 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 | 3040 | 2470 | 2240 | 1900 |
| 7.00-12 | B102 | 5.00 | √ | √ | 641 | 164 | 147 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 | 3240 | 2635 | 2390 | 2025 |
| 8.25-12 | B102 | 5.00 | √ | √ | 705 | 190 | 170 | 3425 | 2635 | 3125 | 2405 | 2905 | 2235 | 3575 | 2905 | 2635 | 2235 |
| 23x10-12 | B102 | 8.00 | √ | √ | 586 | 240 | 224 | 4450 | 3425 | 4060 | 3125 | 3770 | 2900 | 4640 | 3779 | 3420 | 2900 |
| 27x10-12 | B102 | 8.00 | √ | √ | 642 | 240 | 221 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 | 4800 | 3900 | 3540 | 3000 |
| 7.00-15 | B102 | 5.50 | √ | 714 | 184 | 162 | 3700 | 2845 | 3375 | 2595 | 3135 | 2410 | 3855 | 3135 | 2845 | 2410 | |
| 7.50-15 | B102 | 6.50 | v | 766 | 198 | 177 | 4490 | 3455 | 4100 | 3155 | 3810 | 2930 | 4690 | 3810 | 3455 | 2930 | |
| 28x9-15 | B102 | 7.00 | √ | √ | 685 | 227 | 200 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 4240 | 3445 | 3125 | 2650 |
| 8.25-15 | B102 | 6.50 | √ | √ | 789 | 214 | 198 | 4305 | 3310 | 3925 | 3020 | 3540 | 2800 | 4480 | 3640 | 3305 | 2800 |
| 250-15 | B102 | 7.0/7.5 | √ | √ | 695 | 225 | 210 | 5220 | 4015 | 4770 | 3670 | 4425 | 3405 | 5450 | 4425 | 4015 | 3405 |
| 300-15 | B102 | 8.00 | √ | √ | 802 | 249 | 226 | 6895 | 5305 | 6300 | 4845 | 5850 | 4500 | 7200 | 5850 | 5310 | 4500 |
| 28x12.5-15 | B102 | 9.75 | √ | √ | 680 | 281 | 265 | 6200 | 4470 | 5660 | 4355 | 5260 | 4045 | 6470 | 5260 | 4775 | 4045 |
| 32x12.1-15 | B102 | 9.75 | 795 | 295 | 280 | - | - | - | - | 7085 | 5450 | 8720 | 7085 | 6430 | 5450 | ||
| 7.50-16 | B102 | 5.50 | √ | 769 | 198 | 177 | 4035 | 3105 | 3685 | 2835 | 3425 | 2635 | 4215 | 3425 | 3110 | 2635 | |
| 8.00-16 | B102 | 5.50 | √ | 777 | 201 | 180 | 4070 | 3130 | 3720 | 2860 | 3450 | 2655 | 4250 | 3450 | 3135 | 2655 | |
| 9.00-16 | B102 | 6.00 | √ | 825 | 217 | 205 | 4480 | 3445 | 4090 | 3145 | 3795 | 2920 | 4670 | 3795 | 3445 | 2920 | |
| 8.25-20 | B102 | 6.50 | √ | 937 | 219 | 198 | 5335 | 4445 | 4870 | 4060 | 4525 | 3770 | 5655 | 4900 | 4110 | 3770 | |
| 9.00-20 | B102 | 7.00 | √ | 987 | 236 | 218 | 6365 | 5305 | 5815 | 4845 | 5400 | 4500 | 6750 | 5850 | 4905 | 4500 | |
| 10.00-20 | B102 | 8.00 | √ | 1015 | 258 | 238 | 7300 | 6085 | 6670 | 5560 | 6200 | 5165 | 7750 | 6715 | 5630 | 5165 | |
| 11.00-20 | B102 | 8.00 | √ | 1034 | 271 | 256 | 7715 | 6430 | 7045 | 5870 | 6540 | 5450 | 8175 | 7085 | 5940 | 5450 | |
| 12.00-20 | B102 | 8.50 | √ | 1081 | 304 | 275 | 9190 | 7660 | 8390 | 6990 | 7795 | 6495 | 9745 | 8445 | 7080 | 6495 | |
