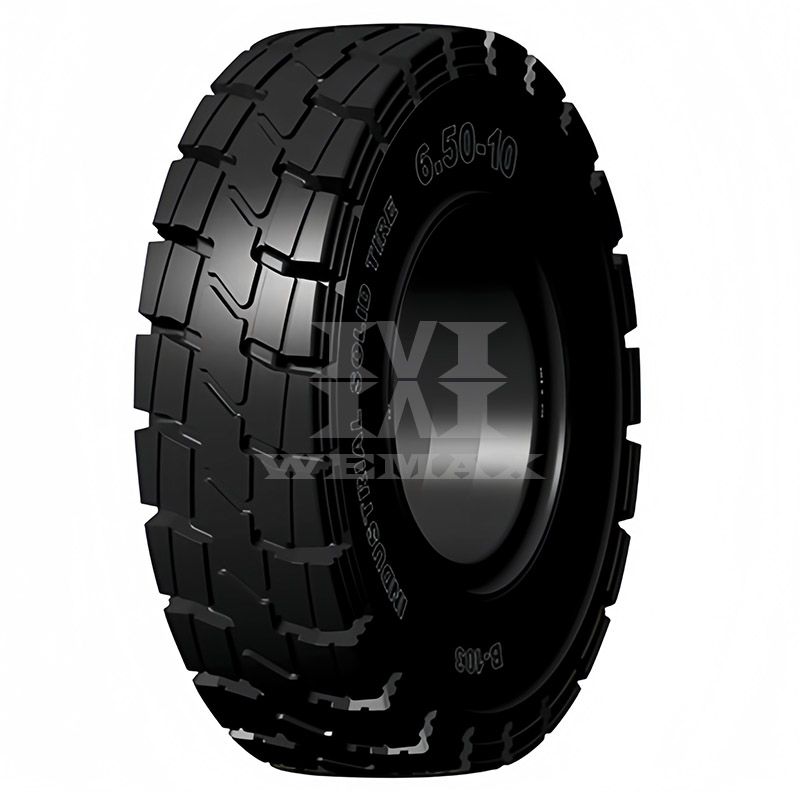

B103
SOLID

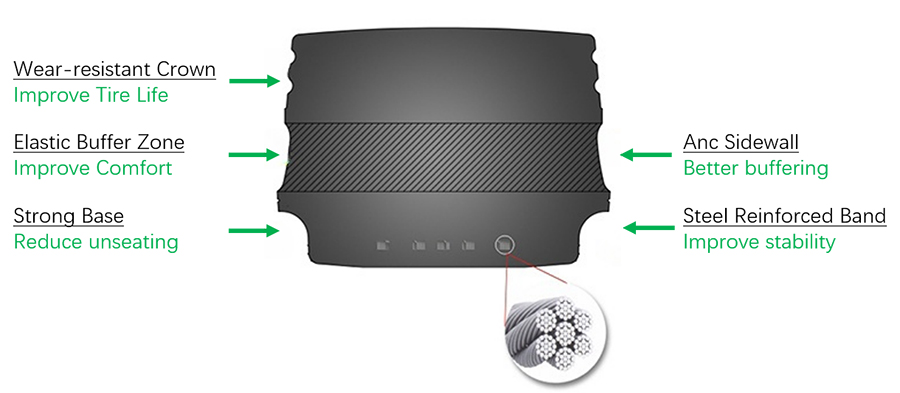

Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Suitable for ceramic factory, brewery, paper mill and other harsh environment
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications
Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Suitable for ceramic factory, brewery, paper mill and other harsh environment
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications
Description
| SIZE | PATTERN | RIM | O.D. | S.W. | Surface Width |
Loading Capacity(kg) Counter Balance Lift Equipment |
Loading Capacity(kg) Other Industrial Equipment |
||||||||||
| 10km/h | 16km/h | 25km/h | |||||||||||||||
| Size | STD | SWIFT | mm | mm | mm | Driving | Steering | Driving | Steering | Driving | Steering | Static | 6km/h | 10km/h | 25km/h | ||
| 15x4 1/2-8 | B103 | 3.00 | √ | √ | 375 | 116 | 110 | 1005 | 775 | 915 | 705 | 850 | 655 | 1050 | 850 | 775 | 655 |
| 5.00-8 | B103 | 3.25 | √ | √ | 457 | 125 | 118 | 1255 | 965 | 1145 | 880 | 1060 | 815 | 1305 | 1060 | 960 | 815 |
| 16x6-8 | B103 | 4.33 | √ | √ | 406 | 148 | 140 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 | 1610 | 1305 | 1185 | 1005 |
| 18x7-8 | B103 | 4.33 | √ | √ | 447 | 153 | 147 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 2535 | 2060 | 1870 | 1585 |
| 18x7-8加宽 | B103 | 4.33 | √ | √ | 455 | 175 | 163 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 2535 | 2060 | 1870 | 1585 |
| 140/55-9 | B103 | 4.00 | √ | √ | 375 | 120 | 114 | 1380 | 1060 | 1260 | 970 | 1170 | 900 | 1440 | 1170 | 1060 | 900 |
| 6.00-9 | B103 | 4.00 | √ | √ | 520 | 145 | 140 | 1975 | 1520 | 1805 | 1390 | 1675 | 1290 | 2065 | 1675 | 1520 | 1290 |
| 7.00-9 | B103 | 5.00 | √ | √ | 565 | 170 | 155 | 2670 | 2055 | 2440 | 1875 | 2260 | 1740 | 2785 | 2260 | 2055 | 1740 |
| 21x8-9 | B103 | 6.00 | √ | √ | 517 | 190 | 182 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 3025 | 2455 | 2230 | 1890 |
| 6.50-10 | B103 | 5.00 | √ | √ | 564 | 163 | 152 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 2840 | 2310 | 2095 | 1775 |
| 23x9-10 | B103 | 6.50 | √ | √ | 583 | 198 | 185 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 | 3890 | 3160 | 2865 | 2430 |
| 200/50-10 | B103 | 6.50 | √ | √ | 454 | 190 | 178 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 | 3040 | 2470 | 2240 | 1900 |
| 7.00-12 | B103 | 5.00 | √ | √ | 636 | 167 | 156 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 | 3240 | 2635 | 2390 | 2025 |
| 23x10-12 | B103 | 8.00 | √ | √ | 576 | 242 | 232 | 4450 | 3425 | 4060 | 3125 | 3770 | 2900 | 4640 | 3779 | 3420 | 2900 |
| 27x10-12 | B103 | 8.00 | √ | √ | 668 | 240 | 231 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 | 4800 | 3900 | 3540 | 3000 |
| 28x9-15 | B103 | 7.00 | √ | √ | 690 | 215 | 205 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 | 4240 | 3445 | 3125 | 2650 |
| 8.25-15 | B103 | 6.50 | √ | √ | 787 | 206 | 195 | 4305 | 3310 | 3925 | 3020 | 3540 | 2800 | 4480 | 3640 | 3305 | 2800 |
| 250-15 | B103 | 7.50 | √ | √ | 720 | 233 | 218 | 5220 | 4015 | 4770 | 3670 | 4425 | 3405 | 5450 | 4425 | 4015 | 3405 |
| 300-15 | B103 | 8.00 | √ | √ | 805 | 265 | 245 | 6895 | 5305 | 6300 | 4845 | 5850 | 4500 | 7200 | 5850 | 5310 | 4500 |
| 28x12.5-15 | B103 | 9.75 | √ | √ | 695 | 305 | 297 | 6200 | 4770 | 5660 | 4355 | 5260 | 4045 | 6470 | 5260 | 4775 | 4045 |
| 32x12.1-12 | B103 | 9.75 | 795 | 295 | 280 | - | - | - | - | 7085 | 5450 | 8720 | 7085 | 6430 | 5450 | ||
| 355/65-15 | B103 | 9.75 | √ | √ | 805 | 302 | 292 | - | - | - | - | 7800 | 6000 | - | - | 6430 | 5450 |
