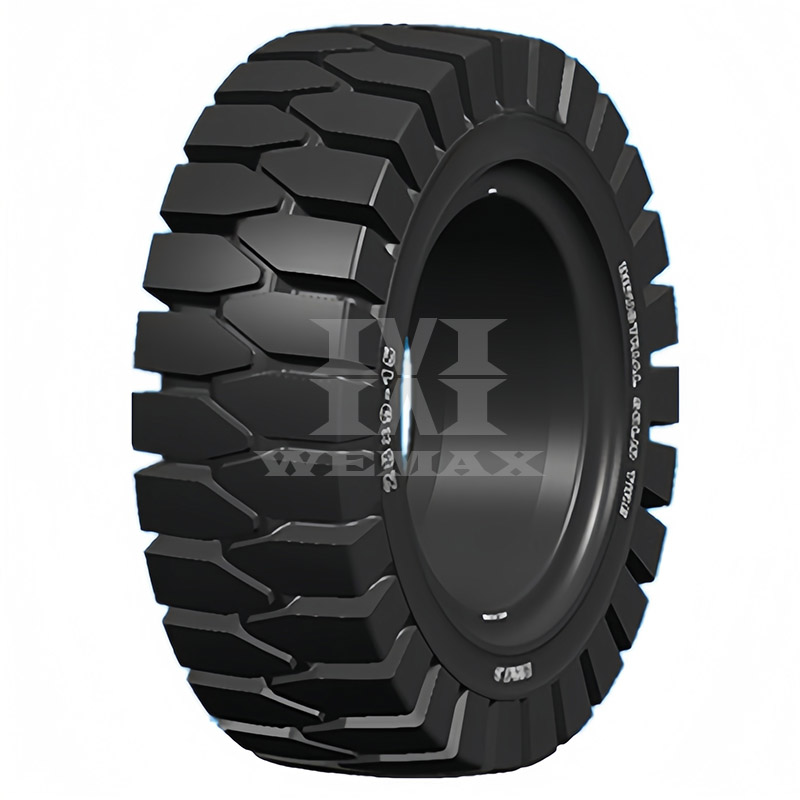

B104
SOLID
Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Designed for Scrap metal sites, or high-load sites, ultra-wide tread and increased pattern situation, offering more wear resistance
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications

Premium 3 stage solid resilient tire optimized for durability and performance.
Designed with a durable tread compound to supply 15% more wear resistance.
Improved center compound delivers more heat resistance.
Enhanced mixing and building process ensures optimum performance in the working environment
Designed for Scrap metal sites, or high-load sites, ultra-wide tread and increased pattern situation, offering more wear resistance
Features
■Premium natural rubber compounds
■Wide footprint for maximum lifting stability
■Cut and wear resistant compound
■Full tread profile for uniform load distribution
■Deep tread configuration for superior traction
■Available in both Standard, and Swift(Clip/Halo/LOC) bead set configuration
Applications

Description
| SIZE | PATTERN | RIM | O.D. | S.W. | Surface Width |
Loading Capacity(kg) Counter Balance Lift Equipment |
Loading Capacity(kg) Other Industrial Equipment |
|||||
| 10km/h | 25km/h | Static | ||||||||||
| Size | STD | SWIFT | mm | mm | mm | Driving | Steering | Driving | Steering | |||
| 5.00-8 | B104 | 3.25 | √ | √ | 447 | 117 | 114 | 1255 | 955 | 1080 | 815 | 1305 |
| 18x7-8 | B104 | 4.33 | √ | √ | 412 | 153 | 147 | 2430 | 1870 | 2060 | 1585 | 2535 |
| 6.00-9 | B104 | 4.00 | √ | √ | 512 | 140 | 135 | 1975 | 1520 | 1675 | 1290 | 2065 |
| 6.50-10 | B104 | 5.00 | √ | √ | 557 | 163 | 153 | 2715 | 2090 | 2310 | 1775 | 2840 |
| 7.00-12 | B104 | 5.00 | √ | √ | 635 | 166 | 152 | 3105 | 2390 | 2635 | 2025 | 3240 |
| 28x9-15 | B104 | 7.00 | √ | √ | 690 | 224 | 218 | 4060 | 3125 | 3445 | 2550 | 4240 |
| 8.25-15 | B104 | 6.50 | √ | √ | 777 | 203 | 194 | 4550 | 4100 | 3900 | 3400 | 5510 |
| 300-15 | B104 | 8.00 | √ | √ | 796 | 247 | 237 | 8895 | 5305 | 5850 | 4500 | 7200 |
| 650-16 | B104 | 5.5F | 470 | 170 | 162 | |||||||
