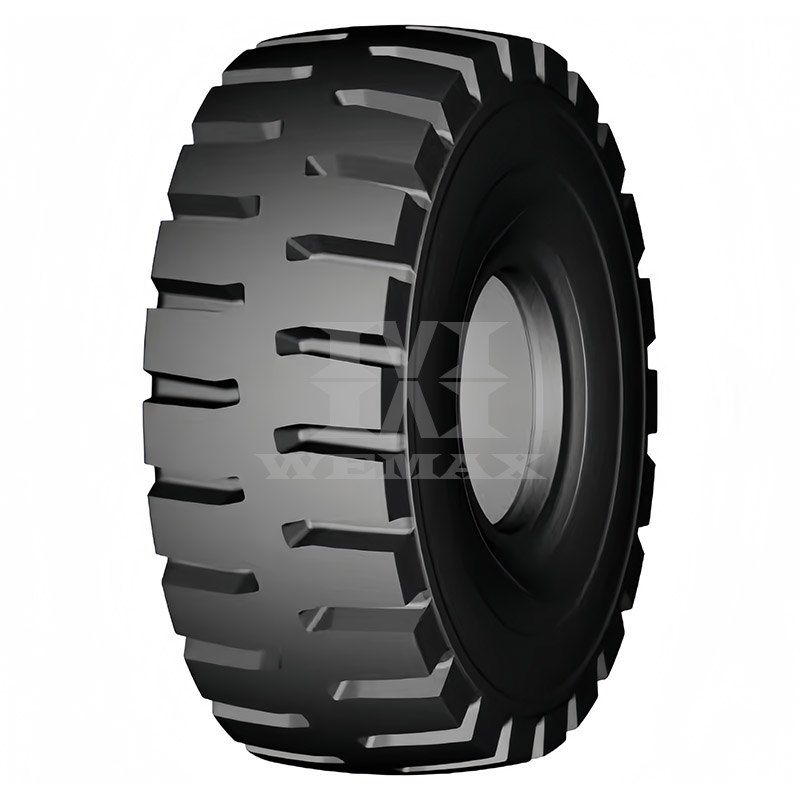

EX A51
L5
For use in the most severe applications where traction and long tread life are required.
Features
■Specialized mining comound for increased cut and impact resistance
■Extra deep L5 offset lug pattern combines excellent traction and high resistance to wear in all off-road conditions
Deep undertread for improved puncture resistance
■Deep undertread for imporved puncture reisistance
■Reinforced bead, shoulder and sidewall for increased cut resistance
Applications

For use in the most severe applications where traction and long tread life are required.
Features
■Specialized mining comound for increased cut and impact resistance
■Extra deep L5 offset lug pattern combines excellent traction and high resistance to wear in all off-road conditions
Deep undertread for improved puncture resistance
■Deep undertread for imporved puncture reisistance
■Reinforced bead, shoulder and sidewall for increased cut resistance
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
L.I.S |
| mm | mm | mm | 10km/h | ||||||||
| 29.5R25 | EX A51 | L5 | TL | 25.00/3.5 | ★★★ | 1905 | 750 | 95 | 650 | 25750 | 221A2 |
| 29.5R25 | EX A51 | L5 | TL | 25.00/3.5 |
★★ |
1905 | 750 | 95 | 650 | 22400 | 216A2 |
| 26.5R25 | EX A51 | L5 | TL | 22.00/3.0 | ★★★ | 1775 | 675 | 85 | 650 | 21200 | 214A2 |
| 26.5R25 | EX A51 | L5 | TL | 22.00/3.0 |
★★ |
1775 | 675 | 85 | 650 | 18500 | 209A2 |
|
35/65R33 |
EX A51 | L5 | TL | 28.00/3.5 |
★★ |
2038 | 864 | 96 | 650 | 28000 | 224A2 |
| 45/65R45 | EX A51 | L5 | TL | 36.00/4.5 |
★★ |
2734 | 1126 | 110 | 650 | 51500 | 245A2 |
