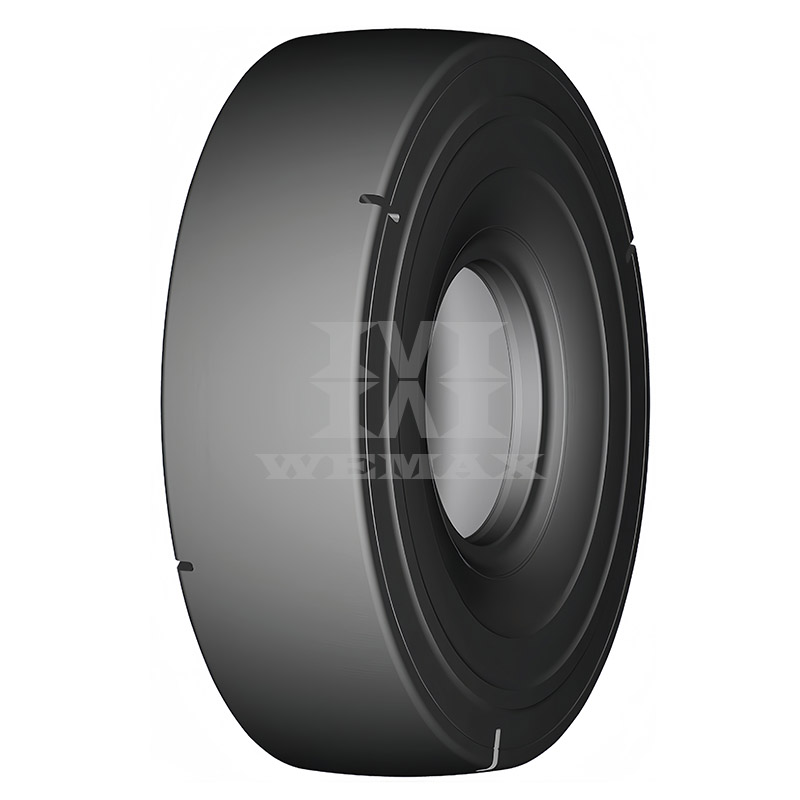

EX A52
L5S
For equipment operation in highly abrasive material environments where maximum protection from penetrations and cuts is needed.
Features
■Extra deep L5S design provides the highest resistance to wear and cutting, improving tire life and lowering operating cost
■Deep undertread for imporved puncture reisistance
■Reinforced bead, shoulder and sidewall for increased cut resistance
■Specialized mining compound for increased cut and impact resistance
Applications

For equipment operation in highly abrasive material environments where maximum protection from penetrations and cuts is needed.
Features
■Extra deep L5S design provides the highest resistance to wear and cutting, improving tire life and lowering operating cost
■Deep undertread for imporved puncture reisistance
■Reinforced bead, shoulder and sidewall for increased cut resistance
■Specialized mining compound for increased cut and impact resistance
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation |
L.C.C (kg) |
L.I.S |
| mm | mm | mm | KPa | 10km/h | |||||||
| 12.00R20 | EX A52 | L5S | TT/TL | 8.5 | ★★ | 1170 | 310 | 58 | 825 | 6150 | 171A2 |
| 12.00R24 | EX A52 | L5S | TT/TL | 8.5 | ★★ | 1260 | 305 | 58 | 825 | 6900 | 175A2 |
| 14.00R24 | EX A52 | L5S | TL | 10.00W | ★★★ | 1395 | 385 | 60 | 800 | 9500 | 186A2 |
| 17.5R25 | EX A52 | L5S | TL | 14.00/1.5 | ★★ | 1380 | 435 | 76 | 650 | 8500 | 182A2 |
| 18.00R25 | EX A52 | L5S | TL | 13.00/2.5 | ★★ | 1650 | 490 | 86 | 825 | 16000 | 204A2 |
| 26.5R25 | EX A52 | L5S | TL | 22.00/3.0 | ★★ | 1775 | 675 | 95 | 650 | 18500 | 209A2 |
| 35/65R33 | EX A52 | L5S | TL | 28.00/3.5 | ★★ | 2070 | 900 | 95 | 800 | 32500 | 224A2 |
| 35/65R33 | EX A52 | L5S | TL | 28.00/3.5 | ★★★ | 2070 | 900 | 95 | 650 | 28000 | 229A2 |
