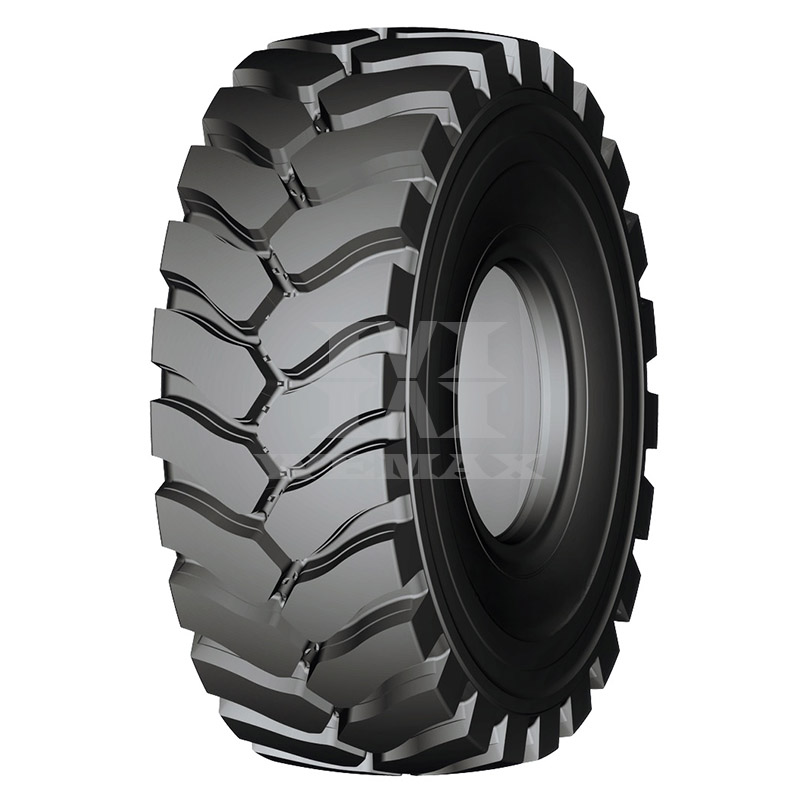

EX A54
L5
Extra Deep, open lug L5 traction pattern combines excellent traction and high resistance to wear and cutting.Specifically designed to maximize service life in the harshest applications.
Features
■The interlaced block pattern and square shoulder benefit control continuity and stability.
■The open patterns provide good grip and traction
■The reinforced carcass, sidewall kerbing rib, optimized contact shape, deep grooves and specialized compounds effectively extend service life
■The stone rejectors and sidwall kerfing effectively protect the groove bottom and sidewall from damage, making them more suitable for severe conditions
Applications
Extra Deep, open lug L5 traction pattern combines excellent traction and high resistance to wear and cutting.Specifically designed to maximize service life in the harshest applications.
Features
■The interlaced block pattern and square shoulder benefit control continuity and stability.
■The open patterns provide good grip and traction
■The reinforced carcass, sidewall kerbing rib, optimized contact shape, deep grooves and specialized compounds effectively extend service life
■The stone rejectors and sidwall kerfing effectively protect the groove bottom and sidewall from damage, making them more suitable for severe conditions
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation (KPa/PSI) |
L.C.C (kg) |
L.I.S |
| mm | mm | mm | 10km/h | ||||||||
| 29.5R25 | EX A54 | L5 | TL | 25.00/3.5 | ★★ | 1880 | 750 | 98 | 650/94 | 22400 | 216A2 |
| 26.5R25 | EX A54 | L5 | TL | 22.00/3.0 | ★★ | 1775 | 675 | 85 | 650/94 | 18500 | 209A2 |
| 23.5R25 | EX A54 | L5 | TL | 19.50/2.5 | ★★ | 1650 | 605 | 77 | 650/94 | 14500 | 201A2 |
| 20.5R25 | EX A54 | L5 | TL | 17.00/2.0 | ★★ | 1530 | 525 | 72 | 650/94 | 11500 | 193A2 |
| 17.5R25 | EX A54 | L5 | TL | 14.00/1.5 | ★★ | 1400 | 440 | 65 | 650/94 | 8500 | 182A2 |
