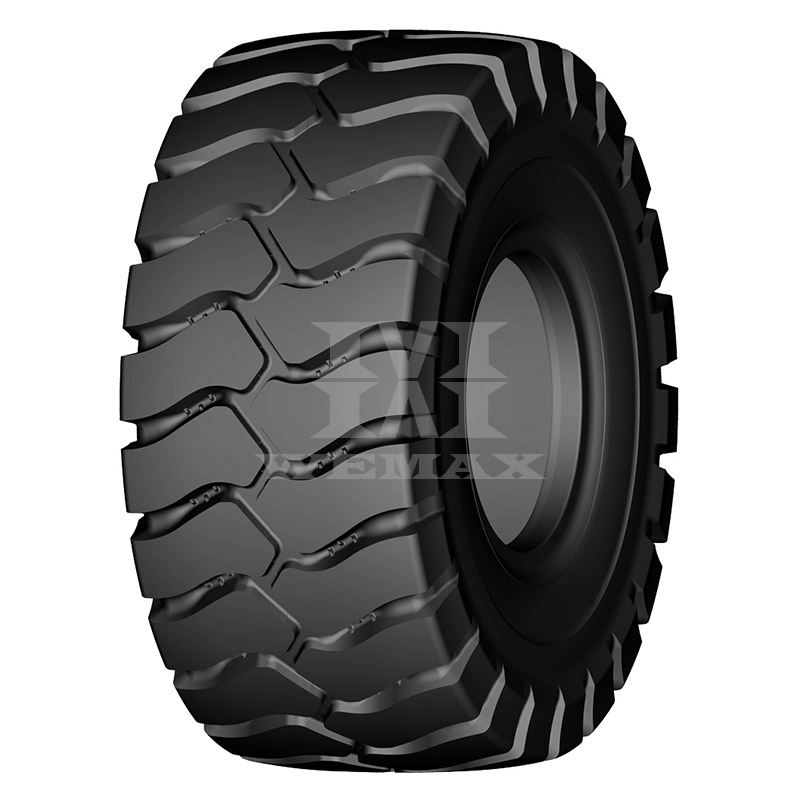

EX A46
E4/L4
Deep E4/L4 lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize traction in loader applications and provide the lowest cost-per-hour.
Features
■Excelletn traction in all off-road conditions
■Deep undertread for imporved puncture resistance
■High quality casing allows for excellent retreadability
■Wear and cut resistant tread compound
■Wide,flat footprint profile for maximum stability and wear
Applications
Deep E4/L4 lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize traction in loader applications and provide the lowest cost-per-hour.
Features
■Excelletn traction in all off-road conditions
■Deep undertread for imporved puncture resistance
■High quality casing allows for excellent retreadability
■Wear and cut resistant tread compound
■Wide,flat footprint profile for maximum stability and wear
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
L.I.S | |
| mm | mm | mm | 10km/h | 40km/h | ||||||||
| 35/65R33 | EX A46 | E4 | TL | 28.00/3.5 | ★★★★ | 2062 | 900 | 62 | 800 | - | 29000 | 225A8 |
| 35/65R33 | EX A46 | L4 | TL | 28.00/3.5 | ★★★ | 2062 | 900 | 62 | 800 | 32500 | - | 229A2 |
| 29.5R29 | EX A46 | E4 | TL | 25.00/3.5 | ★★★★ | 2000 | 760 | 65 | 760 | - | 24300 | 219A8 |
| 29.5R29 | EX A46 | L4 | TL | 25.00/3.5 | ★★★ | 2000 | 760 | 65 | 760 | 29000 | - | 225A2 |
