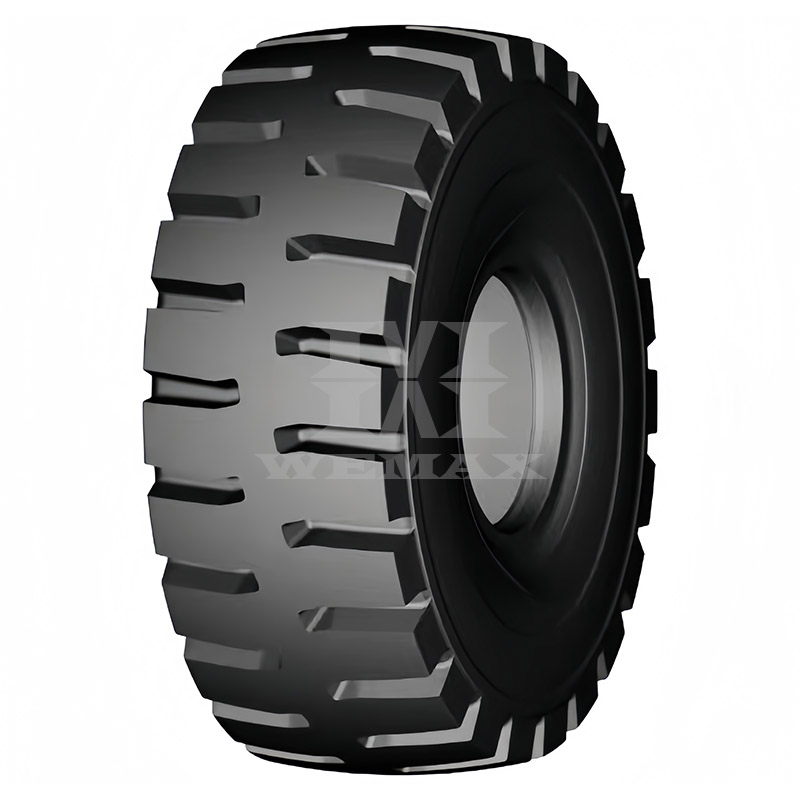

EX A51

EX A51

L5
For use in the most severe applications where traction and long tread life are required.
Features
■Specialized mining comound for increased cut and impact resistance
■Extra deep L5 offset lug pattern combines excellent traction and high resistance to wear in all off-road conditions
Deep undertread for improved puncture resistance
■Deep undertread for imporved puncture reisistance
■Reinforced bead, shoulder and sidewall for increased cut resistance
Applications

Description

SIZE PATTERN TRA TYPE RIM STAR RATING O.D. S.W. T.D. Inflation
(KPa)
L.C.C
(kg)
L.I.S
mm mm mm 10km/h
29.5R25 EX A51 L5 TL 25.00/3.5 ★★★ 1905 750 95 650 25750 221A2
29.5R25 EX A51 L5 TL 25.00/3.5
1905 750 95 650 22400 216A2
26.5R25 EX A51 L5 TL 22.00/3.0 ★★★ 1775 675 85 650 21200 214A2
26.5R25 EX A51 L5 TL 22.00/3.0
1775 675 85 650 18500 209A2
35/65R33 EX A51 L5 TL 28.00/3.5
2038 864 96 650 28000 224A2
45/65R45 EX A51 L5 TL 36.00/4.5
2734 1126 110 650 51500 245A2
