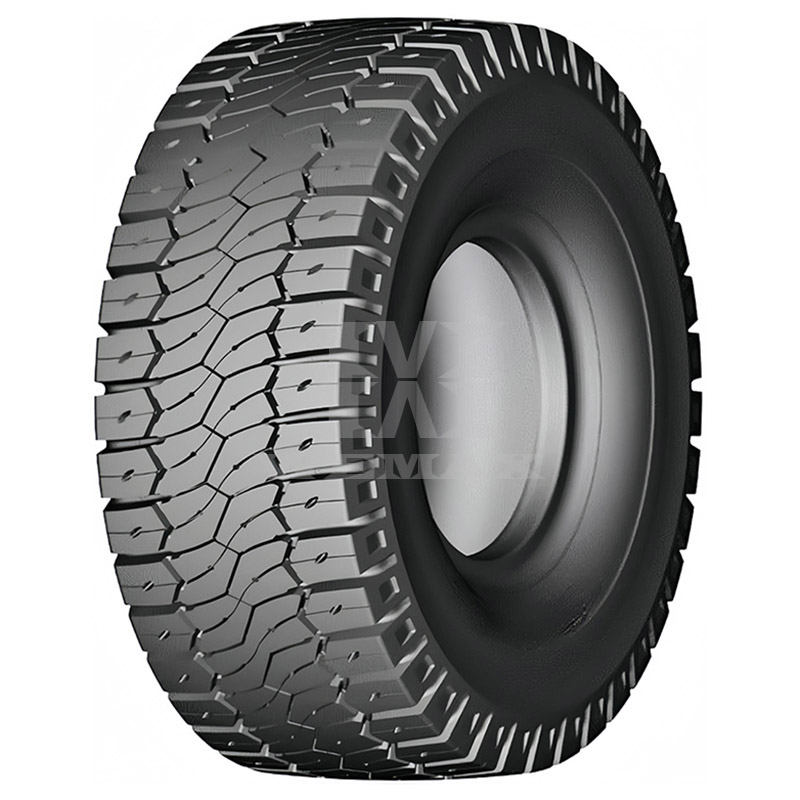

EX ENDURANCE
E4
A versatile tread design allows flexibility in applications from smooth haul roads to rough and rocky terrain while providing maximum productivity
Features
■Excellent traction in haul road conditions
■Extra Deep tread grooves provide cooler running tread for high site TKPH/TMPH
■Wide, square footprint distributes load for minimal haul road disturbance
■Reinforced bead, shoulder and sidewall for increased cut resistance
■Heat resistant undertread reduces tire temperature
■Multiple tread compound options target specific site requirements
Applications
A versatile tread design allows flexibility in applications from smooth haul roads to rough and rocky terrain while providing maximum productivity
Features
■Excellent traction in haul road conditions
■Extra Deep tread grooves provide cooler running tread for high site TKPH/TMPH
■Wide, square footprint distributes load for minimal haul road disturbance
■Reinforced bead, shoulder and sidewall for increased cut resistance
■Heat resistant undertread reduces tire temperature
■Multiple tread compound options target specific site requirements
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
L.I.S | TKPH | ||
| mm | mm | mm | 50km/h | 1S | 2S | 3S | ||||||||
| 33.00R51 | EX ENDURANCE | E4 | TL | 24.00/5.0 | ★★ | 3050 | 920 | 84 | 700 | 38750 | 235B | 660 | 550 | 730 |
| 30.00R51 | EX ENDURANCE | E4 | TL | 22.00/4.5 |
★★ |
2890 | 845 | 76 | 700 | 33500 | 230B |
|
|
|
| 27.00R49 | EX ENDURANCE | E4 | TL | 19.50/4.0 |
★★ |
2720 | 750 | 82 | 700 | 27250 | 223B | 480 | 400 | 510 |
