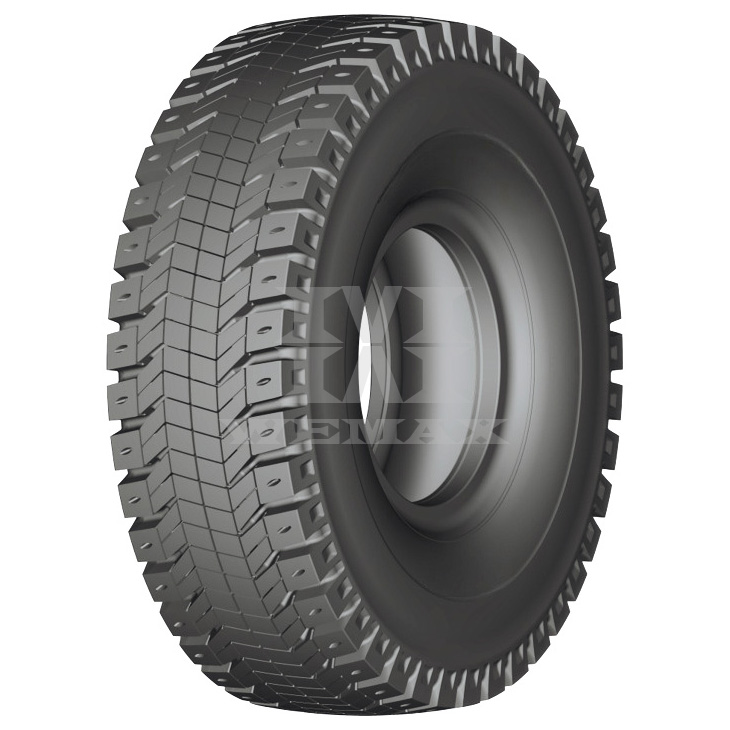

EX GRIP+
E4
A rugged and aggressive tread design that allows maximum tire life for the most demanding mining application
Features
■The longitudinal and transverse groove cross-linking design significantly increases the heat dissipation area and airflow rate, bringing a leapfrog improvement in heat resistance performance;
■Vertical & horizontal groove design effectively prevent creep and lateral extrusion caused by lateral force of block, effectively improve wear resistance, effectively reduce internal friction and uneven wear
■The innovative design of heat dissipation hole depth of crown pattern block minimize heat generation and effectively improve TKPH value
Applications
A rugged and aggressive tread design that allows maximum tire life for the most demanding mining application
Features
■The longitudinal and transverse groove cross-linking design significantly increases the heat dissipation area and airflow rate, bringing a leapfrog improvement in heat resistance performance;
■Vertical & horizontal groove design effectively prevent creep and lateral extrusion caused by lateral force of block, effectively improve wear resistance, effectively reduce internal friction and uneven wear
■The innovative design of heat dissipation hole depth of crown pattern block minimize heat generation and effectively improve TKPH value
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation
(KPa)
|
L.C.C
(kg)
|
L.I.S | TKPH | ||
| mm | mm | mm | 50km/h | 1S | 2S | 3S | ||||||||
| 33.00R51 | EX GRIP+ | E4 | TL | 24.00/5.0 | ★★★ | 3064 | 930 | 95 | 800 | 42500 | 238B | 600 | 500 | 700 |
| 40.00R57 | EX GRIP+ | E4 | TL | 29.00/6.0 | ★★ | 3565 | 1140 | 95 | 700 | 60000 | 250B | 860 | 730 | 980 |
| 46/90R57 | EX GRIP+ | E4 | TL |
29.00/6.0
32.00/6.0
|
★★ | 3580 | 1160 | 95 | 700 | 63000 | 252B | 950 | 800 | 1200 |
| 53/80R63 | EX GRIP+ | E4 | TL |
36.00/5.0
38.00/5.0
|
★★ | 3810 | 1330 | 105 | 700 | 82500 | 261B | |||
