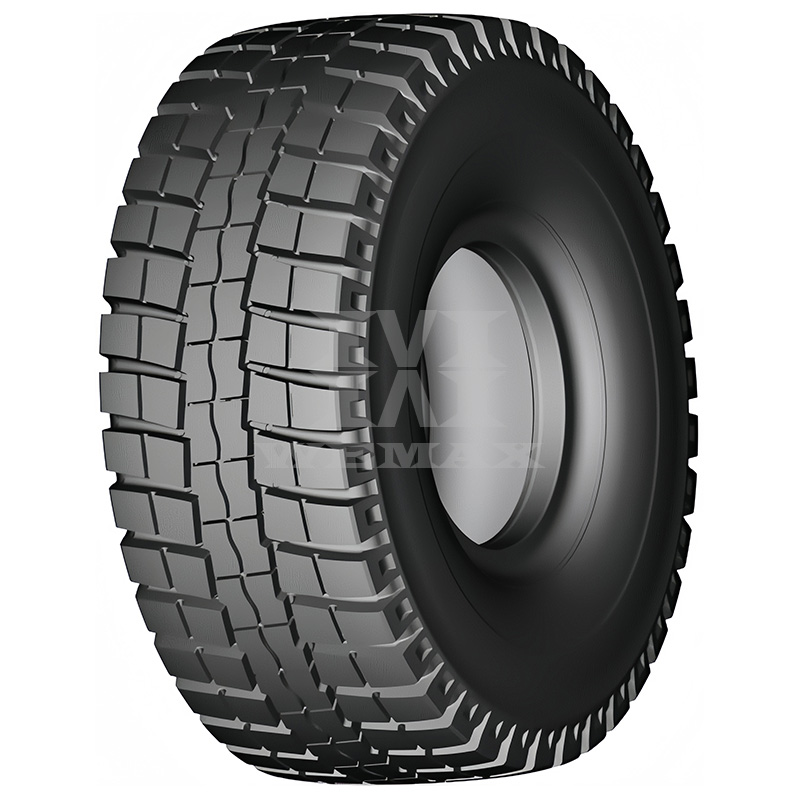

EX MIX GRIP PRO
E4
A versatile tread design allows flexibility in applications from smooth haul roads to rough and rocky terrain while providing maximum productivity
Features
■Excellent traction in all haul road conditions
■Reinforced bead, shoulder and sidewall for increased cut-resistance
■Deep tread grooves provide cooler running tread for high site TKPH
■E4+ deep tread for longest tire life
■Wide, square footprint distributes load for minimal haul road disturbance
■Heat-resistant undertread reduces tire temperature
■Multiple tread compound options target specific site requirements
Applications

A versatile tread design allows flexibility in applications from smooth haul roads to rough and rocky terrain while providing maximum productivity
Features
■Excellent traction in all haul road conditions
■Reinforced bead, shoulder and sidewall for increased cut-resistance
■Deep tread grooves provide cooler running tread for high site TKPH
■E4+ deep tread for longest tire life
■Wide, square footprint distributes load for minimal haul road disturbance
■Heat-resistant undertread reduces tire temperature
■Multiple tread compound options target specific site requirements
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
L.I.S | TKPH | ||
| mm | mm | mm | 50km/h | 1S | 2S | 3S | ||||||||
| 50/80R57 | EX MIX GRIP PRO | E4 | TL | 32.00/6.0 | ★★ | 3600 | 1230 | 95 | 700 | 75000 | 258B | 1050 | 890 | 1250 |
