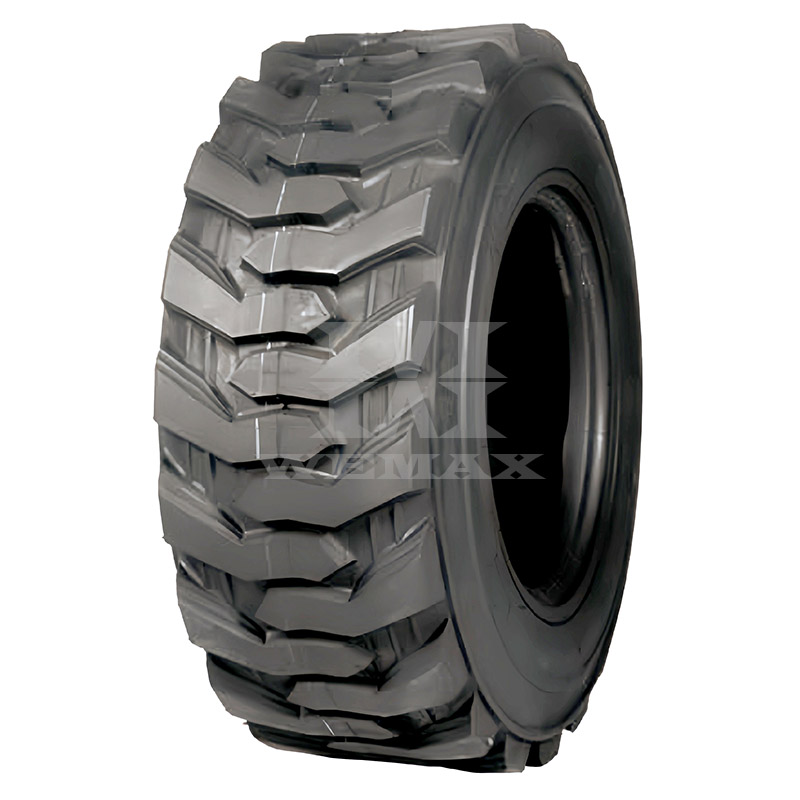

HT601
R4
Deep R4 tread pattern designed for skid steer, backhoe and telehandler applications.
Features
■Full, flat profile with self-cleaning stepped tread improves performance
Center tie bar reduces vibration during over-the-road driving
■Deep undertread for improved puncture resistance
■Special cut resistant compound improves wear and reduces tread chunking
Applications
Deep R4 tread pattern designed for skid steer, backhoe and telehandler applications.
Features
■Full, flat profile with self-cleaning stepped tread improves performance
Center tie bar reduces vibration during over-the-road driving
■Deep undertread for improved puncture resistance
■Special cut resistant compound improves wear and reduces tread chunking
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 10-16.5 | HT601 | R4 | TL | 8.25 | 10PR | 773 | 264 | 17 | 520 | - | 2135 | - |
| 12-16.5 | HT601 | R4 | TL | 9.75 | 12PR | 831 | 307 | 21 | 550 | - | 2865 | - |
| 23x8.50-12 | HT601 | R4 | TL | 7.00JA | 8PR | 574 | 213 | 14 | 450 | - | 975 | - |
| 27x8.50-15 | HT601 | R4 | TL | 7LB | 8PR | 678 | 213 | 15 | 410 | - | 1305 | - |
| 14-17.5 | HT601 | R4 | TL | 10.5 | 14PR | 921 | 349 | 26 | 550 | - | 3875 | - |
| 15-19.5 | HT601 | R4 | TL | 11.75 | 14PR | 1019 | 389 | 26 | 485 | - | 4565 | - |
| 27x10.5-15 | HT601 | R4 | TL | 8LB | 8PR | 691 | 259 | 16 | 410 | - | 1405 | - |
| 33x15.5-16.5 | HT601 | R4 | TL | 12 | 14PR | 831 | 389 | 21 | 410 | - | 3100 | - |
