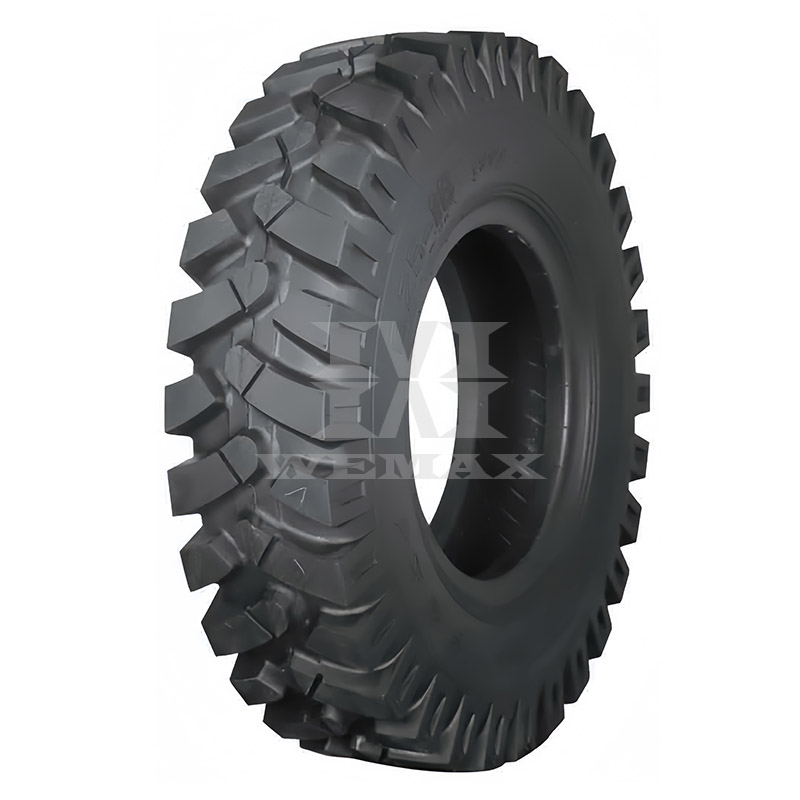

HT810
R4
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 7.50-16 | HT810 | R4 | TT | 6.00G | 14PR | 805 | 215 | 20 | - | 730 | - | 1500 |
| 8.25-16 | HT810 | R4 | TT | 6.50H | 16PR | 855 | 235 | 20 | - | 730 | - | 1800 |
| 9.00-16 | HT810 | R4 | TT | 6.50H | 16PR | 890 | 255 | 20 | - | 730 | - | 2120 |
