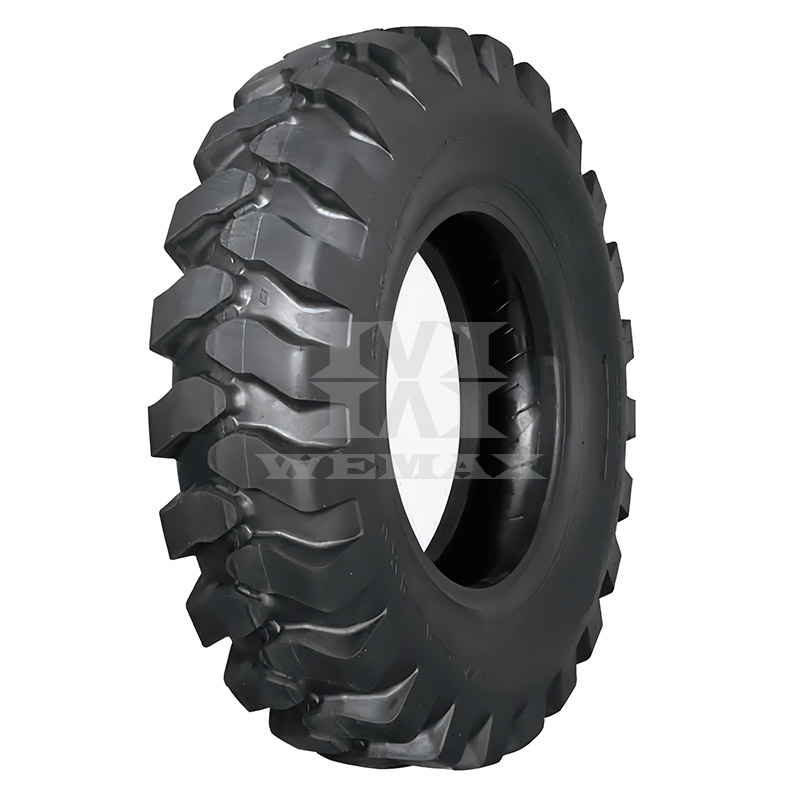

HT816
R4
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 8.25-20 | HT816 | R4 | TT | 6.5 | 14PR | 965 | 236 | 19 | - | 725 | - | 2240 |
| 9.00-20 | HT816 | R4 | TT | 7 | 14PR | 1018 | 259 | 20 | - | 700 | - | 2500 |
| 9.00-20 | HT816 | R4 | TT | 7 | 16PR | 1018 | 259 | 20 | - | 810 | - | 2900 |
| 10.00-20 | HT816 | R4 | TT | 7.5 | 16PR | 1055 | 278 | 21 | - | 750 | - | 3150 |
| 11.00-20 | HT816 | R4 | TT | 8 | 16PR | 1085 | 293 | 22 | - | 725 | - | 3350 |
