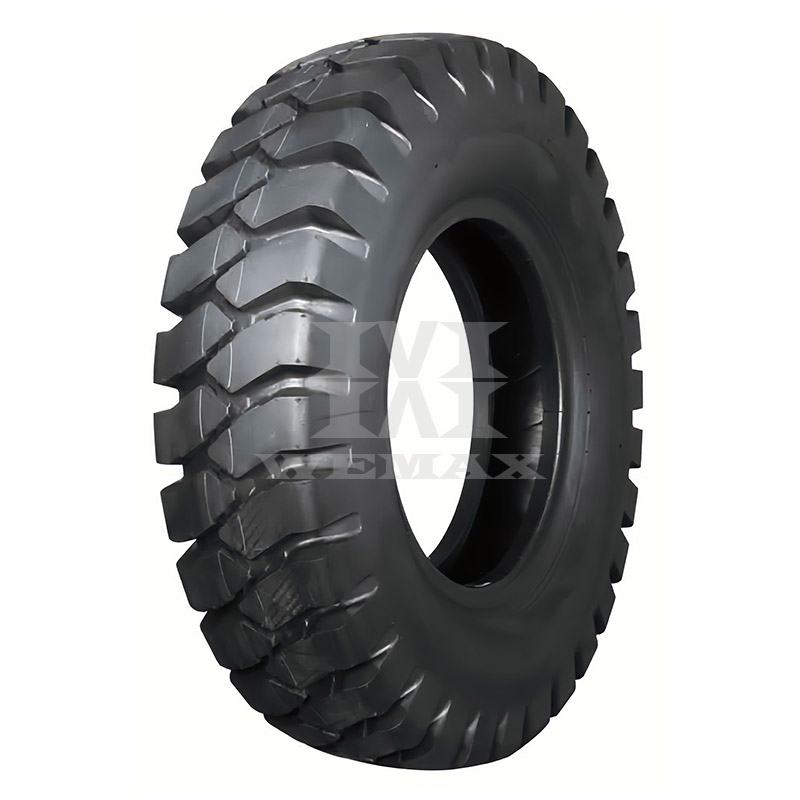

HT818
R4
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
For use on wheeled excavators where traction and stability are required
Features
■Self-cleaning, open tread with mud breakers provides improved traction
■Reinforced sidewall for high stability and cut resistance
■Centerline tread tie bars reduces vibration during over-the-road driving
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 9.00-20 | HT818 | R4 | TT | 7 | 14PR | 1018 | 259 | 19 | - | 700 | - | 2500 |
| 10.00-20 | HT818 | R4 | TT | 7.5 | 16PR | 1055 | 278 | 19 | - | 750 | - | 3150 |
