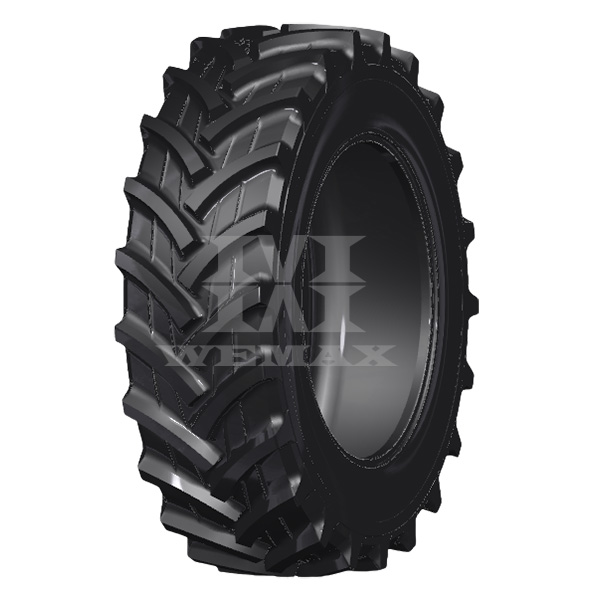

KT178
R1W
Premium 45° lug profile provides excellent traction and minimizes vibration while roading. Low pressure and wide footprint lowers soil compaction.
Features
■Radial tire construction
■Self-cleaning tread design
■Wide tread for maximized performance in the field
■Low pressure for minimal soil disturbance
■Premium rubber compounds reduce ozone cracking and weathering
Applications
Premium 45° lug profile provides excellent traction and minimizes vibration while roading. Low pressure and wide footprint lowers soil compaction.
Features
■Radial tire construction
■Self-cleaning tread design
■Wide tread for maximized performance in the field
■Low pressure for minimal soil disturbance
■Premium rubber compounds reduce ozone cracking and weathering
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | O.D. | S.W. | T.D. | Inflation | L.C.C | L.I.S |
| mm | mm | mm | KPa | kg | ||||||
| 420/85R30 | KT178 | R1W | TL | W13 | 1476 | 418 | 46 | 160 | 2500 | 140 |
| IF520/85R42 | KT178 | R1W | TL | DW18L | 1951 | 526 | 53 | 240 | 5800 | 169 |
| IF580/80R34 | KT178 | R1W | TL | DW20B | 1792 | 576 | 53 | 360 | 7300 | 177 |
| 480/80R38 | KT178 | R1W | TL | W15 | 1733 | 479 | 50 | 200 | 3450 | 149 |
| 380/85R28 | KT178 | R1W | TL | W12 | 1357 | 380 | 46 | 160(40km/h) | 2060(40km/h) | 133 |
| 420/85R28 | KT178 | R1W | TL | W13 | 1425 | 418 | 45 | 160(40km/h) | 2430(40km/h) | 139 |
| 460/85R38 | KT178 | R1W | TL | W14L | 1747 | 455 | 48 | 160(40km/h) | 3250(40km/h) | 149 |
| 520/85R38 | KT178 | R1W | TL | DW16L | 1849 | 516 | 51 | 160(40km/h) | 3875(40km/h) | 155 |
| 650/65R38 | KT178 | R1W | TL | DW20A | 1811 | 645 | 51 | 160(50km/h) | 4125(65km/h) | 157 |
| 620/75R34 | KT178 | R1W | TL | DW20B | 1794 | 625 | 51 | 320(40km/h) | 6420(40km/h) | 170 |
| 580/70R42 | KT178 | R1W | TL | DW18L | 1879 | 577 | 52 | 160(40km/h) | 4250(40km/h) | 158 |
| 440/80R28 | KT178 | R1W | TL | DW14L | 1415 | 441 | 45 | 320(40km/h) | 4000(40km/h) | 156 |
| 600/70R30 | KT178 | R1W | TL | DW18L | 1602 | 591 | 51 | 240(40km/h) | 4250(40km/h) | 158 |
| IF710/70R42 | KT178 | R1W | TL | DW23B | 2061 | 705 | 52 | 240(30km/h) | 7750(30km/h) | 179 |
| 710/70R38 | KT178 | R1W | TL | DW23A | 1959 | 716 | 51 | 240(40km/h) | 6150(40km/h) | 171 |
| 650/65R42 | KT178 | R1W | TL | DW20A | 1913 | 645 | 50 | 240(65km/h) | 5150(65km/h) | 165 |
| 540/65R28 | KT178 | R1W | TL | W18L | 1441 | 578 | 48 | 160(65km/h) | 2650(65km/h) | 142 |
| 420/90R30 | KT178 | R1W | TL | DW13 | 1518 | 418 | 45 | 240(40km/h) | 3075(65km/h) | 147 |
| 540/65R30 | KT178 | R1W | TL | W18L | 1464 | 550 | 50 | 160(65km/h) | 2725(65km/h) | 143 |
| 480/70R28 | KT178 | R1W | TL | W15L | 1421 | 479 | 41 | 160(65km/h) | 2500(65km/h) | 140 |
