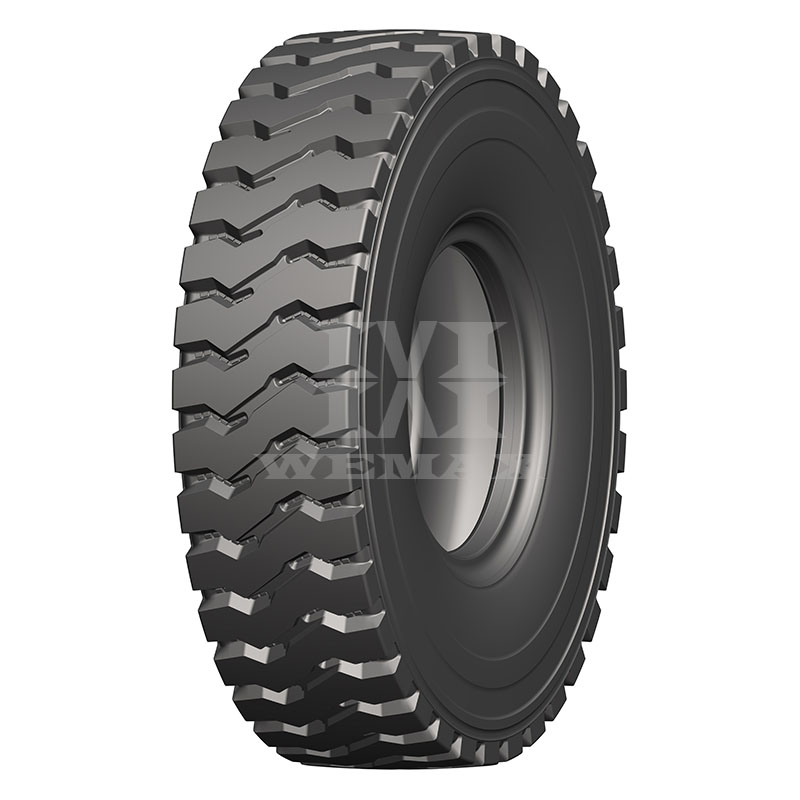

KT625
E3/L3
Standard BIAS E3/L3 rock lug pattern combines excellent traction and high resistance to wear and cutting.
Features
■Excellent traction in all off-road conditions
■Thick undertread for imporved puncture resistance
■High quality casing allows for excellent retreadability
■Wear and cut resistant tread compound
■Wide, flat footprint profile for maximum stability and wear
■Increased net-to-gross for imporved tread life
Applications
Standard BIAS E3/L3 rock lug pattern combines excellent traction and high resistance to wear and cutting.
Features
■Excellent traction in all off-road conditions
■Thick undertread for imporved puncture resistance
■High quality casing allows for excellent retreadability
■Wear and cut resistant tread compound
■Wide, flat footprint profile for maximum stability and wear
■Increased net-to-gross for imporved tread life
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. |
Inflation (KPa) |
L.C.C (kg) |
||
| mm | mm | mm | 10km/h | 50km/h | 10km/h | 50km/h | ||||||
| 23.5-25 | KT625 | E3/L3 | TT/TL | 19.50/2.5 | 24PR | 1615 | 595 | 32.5 | 475 | 350 | 12500 | 8000 |
| 16/70-20 | KT625 | E3/L3 | TL | 13(SDC) | 14PR | 1075 | 410 | 26.5 | 450 | 350 | 51050 | 3350 |
| 16/70-24 | KT625 | E3/L3 | TL | 13(SDC) | 14PR | 1175 | 410 | 20.5 | 450 | 350 | 5600 | 3350 |
| 20.5/70-16 | KT625 | E3/L3 | TL | 8.5 | 14PR | 935 | 325 | 20 | 450 | 350 | 3000 | 1995 |
