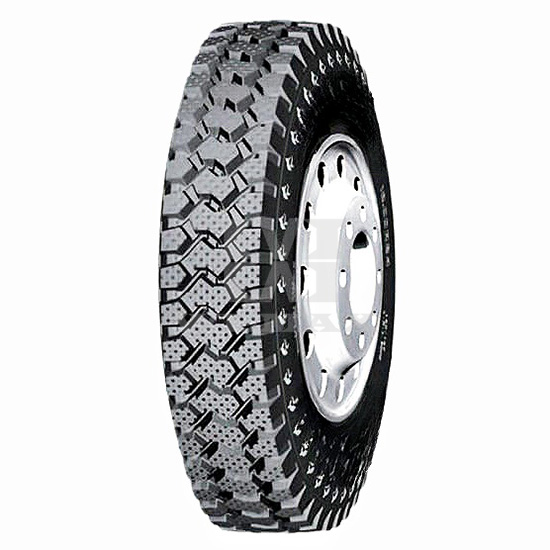

MW616
E4
Extra Deep grooved tread design provides excellent traction in rigid dump truck applications. Ideal for applications requiring maximum road grip and high site TKPH/TMPH.
Features
■The seperated, independent block tread pattern provides good traction, trafficability and self-cleaning
■Optimized contact shape, deep pattern and specialized tread compounds effectively extend service life
■Design of strengthened carcass and reinforced sidewall kerfing rib effectively protect sidewall and improve service life
Reinforced bead, shoulder and sidewall for increased cut resistance
■Heat resistant undertread reduces tire temperature
■Superior long tread life and excellent puncture resistance
Applications

Extra Deep grooved tread design provides excellent traction in rigid dump truck applications. Ideal for applications requiring maximum road grip and high site TKPH/TMPH.
Features
■The seperated, independent block tread pattern provides good traction, trafficability and self-cleaning
■Optimized contact shape, deep pattern and specialized tread compounds effectively extend service life
■Design of strengthened carcass and reinforced sidewall kerfing rib effectively protect sidewall and improve service life
Reinforced bead, shoulder and sidewall for increased cut resistance
■Heat resistant undertread reduces tire temperature
■Superior long tread life and excellent puncture resistance
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | STAR RATING | O.D. | S.W. | T.D. | Inflation | L.C.C | L.I.S |
| 80km/h | 80km/h | ||||||||||
| mm | mm | mm | (KPa) | (kg) | |||||||
| 12.00R24 | MW616 | E4 | TT/TL | 8.5 | ★★★ | 1245 | 315 | 31 | 900 | 4500 |
160/157D 164/161B |
