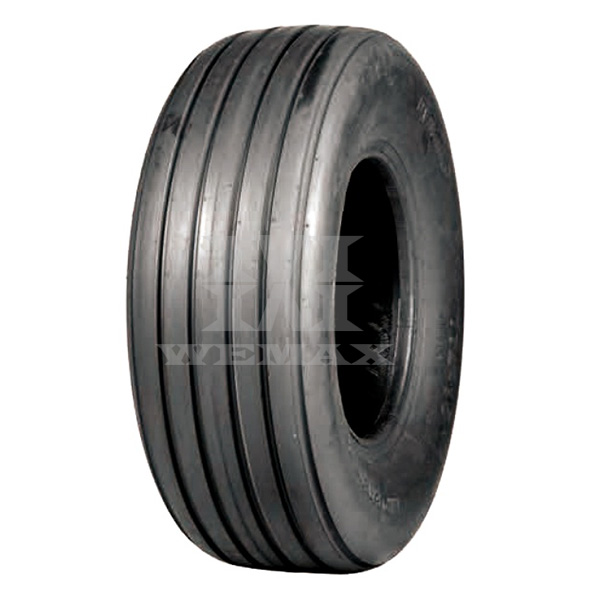

N702
I1
Ribbed implement I1 pattern for high flotation and minimal soil disturbance.
Features
■Extra wide tread design provides maximum flotation
■Deep undertread and reinforced shoulder for improved stubble resistance
■Special cut resistant compound improves wear and reduces tread chunking
■Low rolling resistance
Applications
Ribbed implement I1 pattern for high flotation and minimal soil disturbance.
Features
■Extra wide tread design provides maximum flotation
■Deep undertread and reinforced shoulder for improved stubble resistance
■Special cut resistant compound improves wear and reduces tread chunking
■Low rolling resistance
Applications
Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. | Inflation | L.C.C |
| mm | mm | mm | KPa | kg | ||||||
| 7.60-15 | N702 | I1 | TL | 5.5 | 8PR | 740 | 176 | 6 | 390 | 710 |
| 9.5L-15 | N702 | I1 | TL | 7 | 8PR | 765 | 240 | 8 | 280 | 1100 |
| 11L-15 | N702 | I1 | TL | 8 | 8PR | 775 | 280 | 8 | 220 | 1130 |
| 11L-15 | N702 | I1 | TL | 8 | 12PR | 775 | 280 | 8 | 620 | 1800 |
| 12.5L-15 | N702 | I1 | TL | W10L | 10PR | 823 | 318 | 8 | 620 | 2122 |
| 16.5L-16.1 | N702 | I1 | TL | 16.1X14LB | 10PR | 1025 | 420 | 12 | 220 | 2360 |
| 16.5L-16.1 | N702 | I1 | TL | 16.1X14LB | 14PR | 1025 | 420 | 12 | 300 | 2900 |
| 31X13.50-15 | N702 | I1 | TL | 10LB | 12PR | 792 | 351 | 10 | 520 | 2530 |
