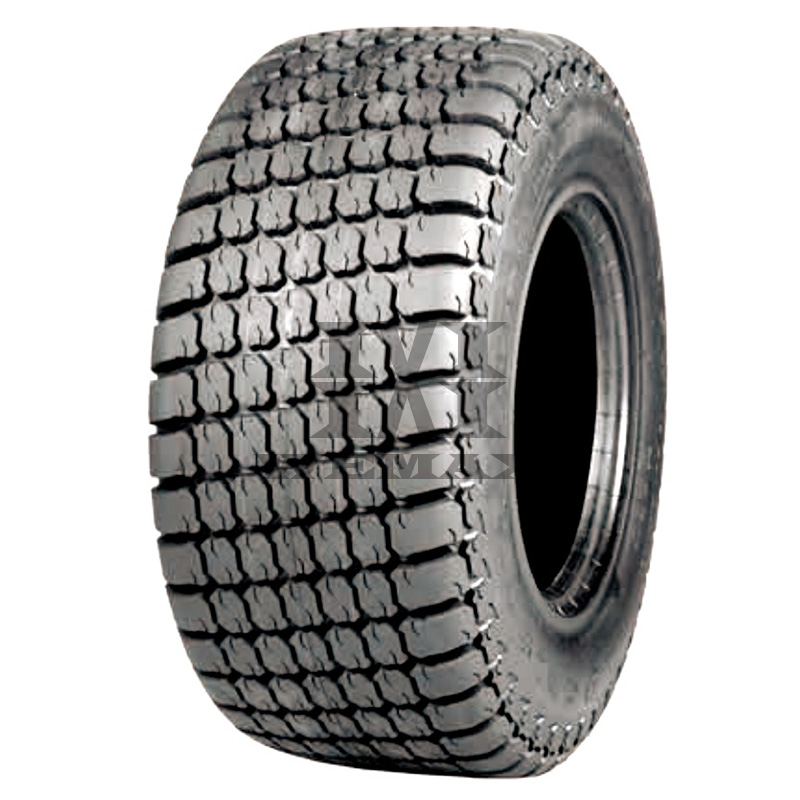

R3
G3
Provides extremely gentle operation of golf carts, turf equipments and lawn movers.
Features
■The high void to rubber ratio enables long tread life, large footprint, as well as, low and uniform ground pressure.
■Low tread depth and the unique shoulder design minimize turf damage on hills and during sharp turns.
■The large footprint allows more tread on the ground and keeps the machine/equipments from sinking in while crossing wet or soft ground.
Applications

Provides extremely gentle operation of golf carts, turf equipments and lawn movers.
Features
■The high void to rubber ratio enables long tread life, large footprint, as well as, low and uniform ground pressure.
■Low tread depth and the unique shoulder design minimize turf damage on hills and during sharp turns.
■The large footprint allows more tread on the ground and keeps the machine/equipments from sinking in while crossing wet or soft ground.
Applications

Description
| SIZE | PATTERN | TRA | TYPE | RIM | PR | O.D. | S.W. | T.D. | Inflation | L.C.C |
| mm | mm | mm | KPa | kg | ||||||
| 33X15.50-16.5 | R3 | R3 | TL | 12 | 10PR | 831 | 389 | 14 | 240 | 2260 |
| 33X15.50-16.5 | R3 | R3 | TL | 12 | 12PR | 831 | 389 | 14 | 415 | 3900 |
| 26X12-12 | R3 | R3 | TL | 10.5 | 8PR | 648 | 307 | 12 | 340 | 1370 |
| 31X13.50-15 | R3 | R3 | TL | 10.5 | 12PR | 792 | 351 | 11 | 520 | 2530 |
