SOLID STAR II

SOLID STAR II

SOLID

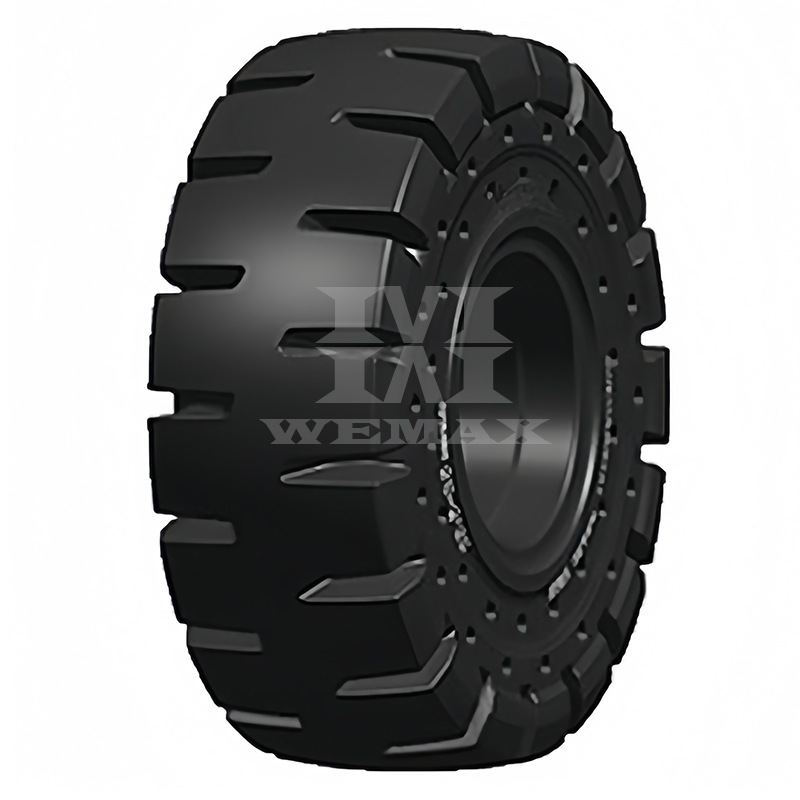

Premium 3-stage solid resilient tire designed for industrial and port applications.
Both Aperture sidewall and Non-Aperture sidewall design are available.
Features
■Premium natural rubber compounds:
- Cut and tear resistant tread
- Soft, heat resistant cushion center
■Premium 3-stage compound construction:
- Evenly layered compound uniformity
- Internal steel ring reinforcement eliminates wheel slip
■Wide footprint for maximum lifting stability
■Full tread profile for uniform load distribution
Applications

Description

SIZE PATTERN RIM O.D. S.W. Surface Width Loading Capacity
Size STD SWIFT mm mm mm kg
12.00-24 SOLID STAR II 8.50 1220 307 296 6450
13.00-24 SOLID STAR II 8.50 1270 320 305 7550
14.00-24 SOLID STAR II 10.00 1320 353 324 8595
17.5-25 SOLID STAR II 14.00 1335 440 410 8250
17.5-25 Small SOLID STAR II 14.00 1300 420 410 8250
16.00-25 SOLID STAR II 11.25 1446 415 395 13600
20.5-25 SOLID STAR II 17.00 1490 520 495 11500
23.5-25 Aperture SOLID STAR II 19.50 1530 590 530 13600
23.5-25 Non-Aperture SOLID STAR II 19.50 1548 600 535 13600
26.5-25 SOLID STAR II 22.00 1740 650 620 17000
29.5-25 SOLID STAR II 25.00 1860 750 695 20950
35/65-33 SOLID STAR II 28.00 2050 880 830 23600
1020-310-24 SOLID STAR II 8.50 996 295 289 7500
